Archive logs to S3

Connect an S3 bucket in your AWS account, and KloudMate exports the workspace’s logs to it every hour as Parquet files. You can then rehydrate any archived range to search it in KloudMate, or query the files directly with your own tools. You need the organization Owner role to set this up.

Archiving is set up per workspace, so connect a bucket for each workspace you want to archive.

Before you start

• An existing S3 bucket. KloudMate doesn’t create the bucket. If you don’t have one yet, create it in S3 first, and note its region: you’ll need to select that exact region in KloudMate.
• No Object Lock on the KloudMate folder. KloudMate writes under <prefix>/kloudmate/ and rewrites an hour’s files when it re-exports that hour, so Object Lock must not apply to that folder.
• The KMS key ARN, if the bucket uses SSE-KMS. KloudMate writes with the bucket’s default encryption. If that’s SSE-KMS, have the key’s ARN ready. It must be a key ARN (arn:aws:kms:<region>:<account>:key/<key-id>), not an alias.
• Permission to create a CloudFormation stack that creates an IAM role. The stack needs the CAPABILITY_IAM acknowledgment.
• A log retention of at least 7 days. KloudMate doesn’t export anything for an organization whose log retention is shorter.

The bucket, region, and prefix can’t be changed after you connect. To move the archive somewhere else, replace the bucket.

Connect the bucket

1. Open Settings → Cold Storage and, on the Archive tab, click Connect S3 bucket.

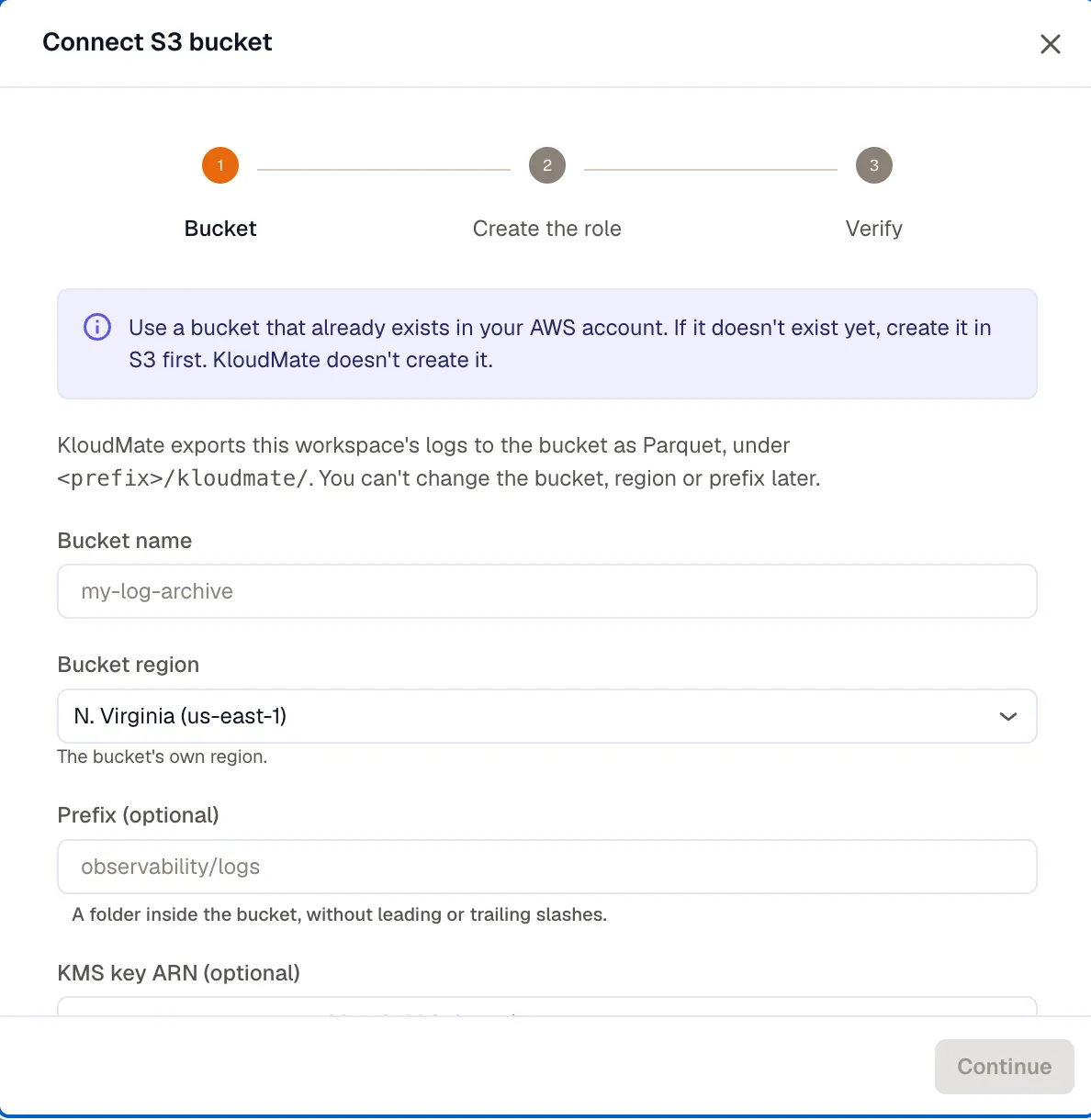

2. Enter the bucket details, then click Continue:

   • Bucket name: the existing bucket, for example my-log-archive.
   • Bucket region: the bucket’s own region.
   • Prefix (optional): a folder inside the bucket, without leading or trailing slashes, for example observability/logs. KloudMate writes under <prefix>/kloudmate/, or under kloudmate/ at the bucket root if you leave it empty.
   • KMS key ARN (optional): only if the bucket encrypts with SSE-KMS.
   • Backfill logs already stored: on by default. It also exports the logs already in the workspace’s retention, not only new ones. Turn it off to start the archive from now.

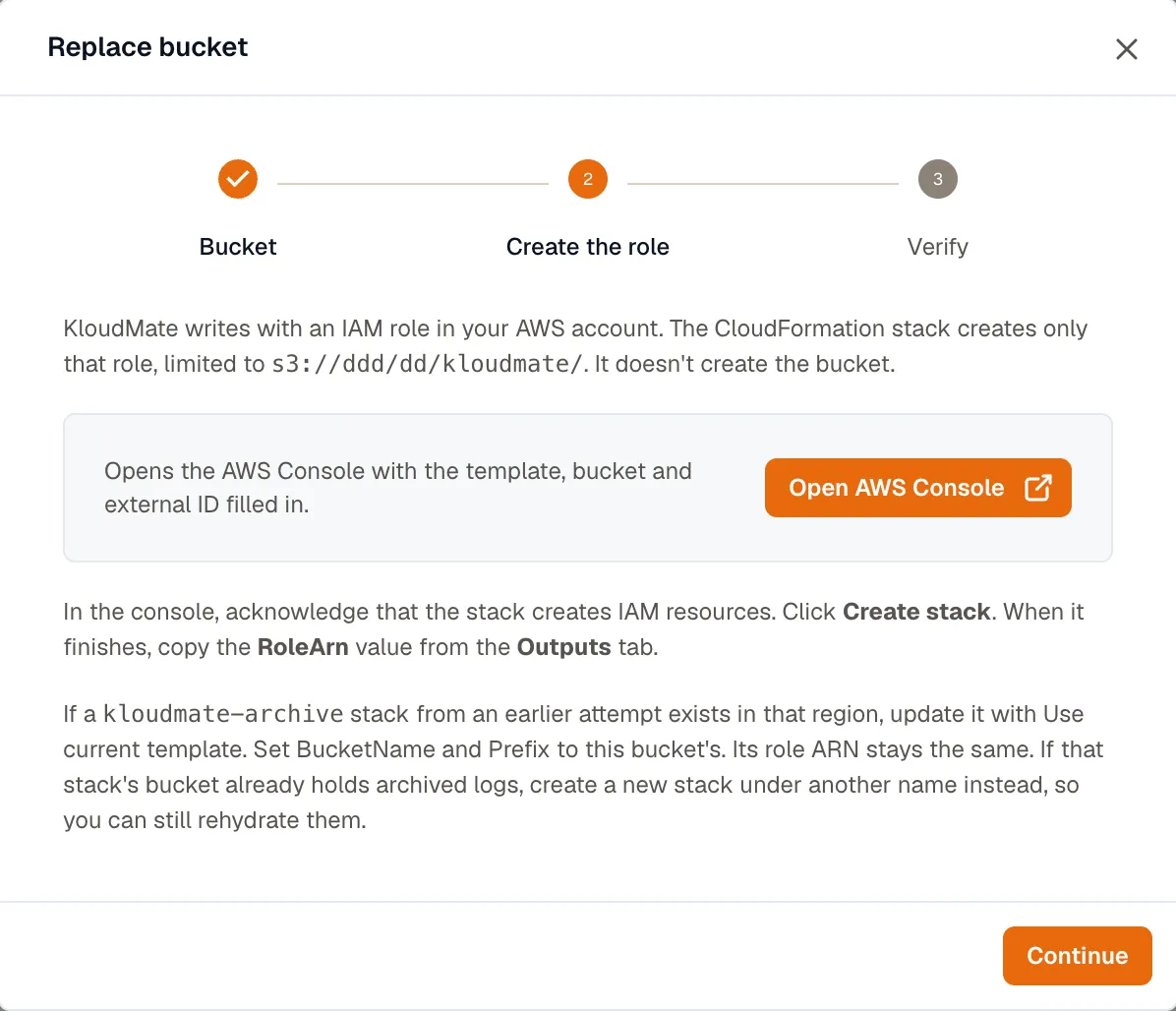

3. Click Open AWS Console. The CloudFormation quick-create page opens in the bucket’s region, with the template, bucket, prefix, KMS key, and external ID filled in. Leave ExternalId as it is.

   If a kloudmate-archive stack already exists in that region, see If a kloudmate-archive stack already exists instead.

4. In the AWS console, acknowledge that the stack creates IAM resources and click Create stack. When the stack finishes, copy the RoleArn value from its Outputs tab. Back in KloudMate, click Continue.

5. Paste the ARN into Role ARN and click Verify.

   Verify does what the export will do: it assumes the role, writes a small test file to <prefix>/kloudmate/_verify/check.txt, reads it back, and lists the folder. If it fails, the message tells you what to fix. See Troubleshoot Cold Storage.

6. When verification passes, click Done.

The first hour is exported about 2 hours after it ends. With backfill on, the older hours are exported after that, which can take a while for a workspace that stores a lot of logs. The Coverage table shows how far it has got.

What the role can do

The stack creates one IAM role and nothing else. The role trusts KloudMate’s AWS account, and only when the request carries your workspace ID as the external ID. Its permissions cover only <prefix>/kloudmate/ in your bucket:

Permission	Used to
s3:PutObject	Write the Parquet files and the verification file
s3:GetObject	Read files back for verification and rehydration
s3:ListBucket, limited to the prefix	List the folder
s3:AbortMultipartUpload, s3:ListMultipartUploadParts	Complete or clean up large uploads
s3:RestoreObject	Restore objects from Glacier storage classes. Rehydration doesn’t use it yet.
kms:GenerateDataKey, kms:Decrypt	Encrypt and decrypt with your KMS key. Added only if you entered a KMS key ARN.

The role has no delete permission, so KloudMate can’t remove anything from your bucket, including files it wrote. Archived files are removed only by you or by the bucket’s lifecycle rules.

If a kloudmate-archive stack already exists

A stack name can be used only once per region, so the quick-create link fails if an earlier attempt left a kloudmate-archive stack there. What to do depends on whether that stack’s bucket holds archived logs you still want to rehydrate:

• It doesn’t, for example an attempt that never verified. Update the existing stack instead of creating a new one. In CloudFormation, select kloudmate-archive, click Update, choose Use current template, set BucketName, Prefix, and, if you use one, KmsKeyArn to the new bucket’s values, and finish the update. The role ARN stays the same, so paste it into KloudMate and verify.
• It does. Keep that stack, since rehydrating from the old bucket still uses its role. On the quick-create page, change Stack name to something new, such as kloudmate-archive-2, and create the stack.

What gets written

Each hour of logs is written to its own folder:

<prefix>/kloudmate/v1/workspace=<workspace-id>/signal=logs/dt=<YYYY-MM-DD>/hour=<HH>/part-<n>.parquet

• Dates and hours are in UTC. A busy hour is split across several part-<n>.parquet files.
• The dt= and hour= folders are Hive-style partitions, so Amazon Athena, AWS Glue, and other Parquet tools can query the archive and skip the hours they don’t need.
• The layout is stable. You can point Athena tables and lifecycle rules at it. New columns may be added to the files over time, but existing paths don’t change.
• An hour with no logs gets no files.

When logs are exported

• Each hour is exported about 2 hours after it ends, so logs that arrive a little late are included.
• Once a day, KloudMate checks the last 3 days and re-exports any hour whose log count has changed since it was exported. Logs that arrive more than 3 days late aren’t archived.
• With backfill on, the archive also covers the logs that were already in the workspace’s retention when you connected. With it off, the archive starts from the hour you connected.

Check archive status

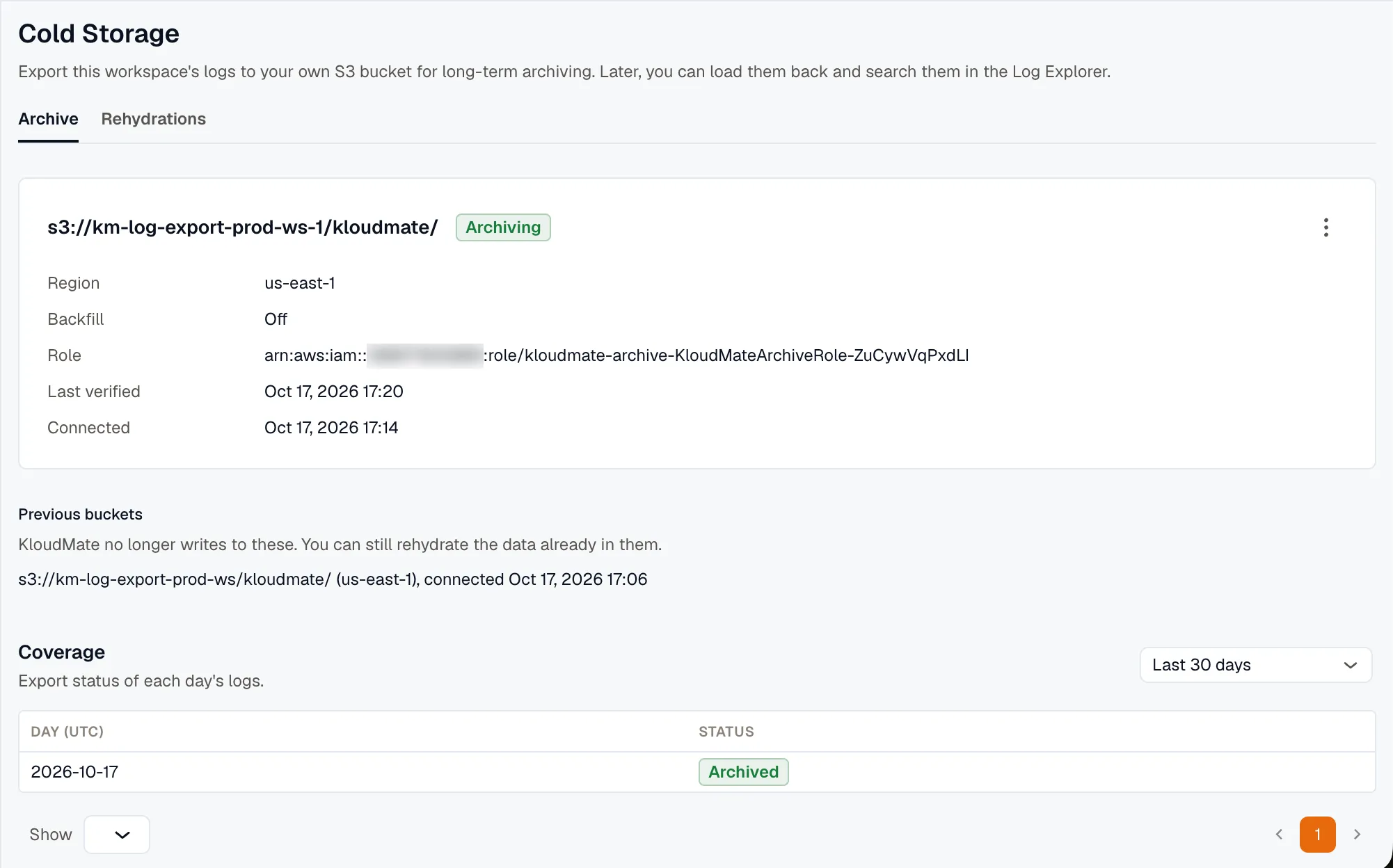

The Archive tab shows the connected bucket and its state:

• Archiving: verified and exporting.
• Not working: KloudMate can’t write to the bucket. Exports are paused, and the reason is shown with its fix. See Troubleshoot Cold Storage.
• Setup incomplete: the role hasn’t been verified yet. Click Finish setup to continue where you left off.
• Disabled: exports are turned off.

Coverage

The Coverage table shows the export status of each UTC day for the last 30, 90, or 400 days:

• Archived: every hour with logs has been exported.
• In progress: some hours are still waiting to be exported.
• No logs: the day had no logs.
• Failed: some hours failed to export. KloudMate retries them once a day while they’re still within the workspace’s retention.
• Expired: some hours left retention before they could be exported. They aren’t in the archive.

A day shows its worst status, so one failed hour marks the whole day as Failed.

Manage the bucket

Replace…, Disable, and Delete are in the bucket’s More options menu.

Verify or change the role

When the bucket shows Not working, fix the cause in AWS and click Verify. Exports resume when it passes. Click Change role to use a different role ARN.

Replace the bucket

Click Replace… to connect a different bucket, region, or prefix. It’s available while exports are enabled. You go through the same steps as a new connection. New hours are exported to the new bucket, and the old one moves to Previous buckets.

You can still rehydrate logs from a previous bucket as long as its role keeps working, so leave the old stack as it is. If the new stack goes in the same region, give it a new name, as described in If a kloudmate-archive stack already exists.

Disable or enable exports

Click Disable to stop exports. When you click Enable again, KloudMate exports the hours it missed, as long as they’re still within the workspace’s retention. You can still rehydrate the logs already archived while exports are disabled.

Delete the archive

Click Delete to stop archiving the workspace and remove the bucket connection. KloudMate also deletes its record of every hour it exported, to this bucket and to any previous ones, and without that record those logs can’t be rehydrated. Rehydrations that are still loading are cancelled. Ready ones stay searchable until they expire.

The files stay in your bucket, because KloudMate has no permission to delete them. You can still query them with your own tools. To remove the role too, delete the CloudFormation stack in AWS.
